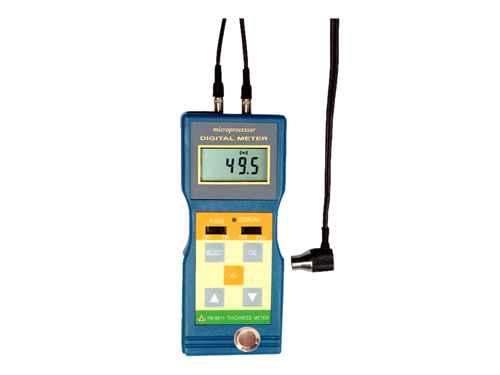

Ultrasonic Thickness Meter

Model:TM-8811

1. Specification:
Operating Principle:             Ultrasonic
Materials Measured:            Any hard materials, including steel, cast iron, aluminum,red  copper, brass, zinc, quartz glass, polyethylene, PVC,  gray cast iron, nodular cast iron and other materials
Lower Limit Steel Pipes:       O15x2.0mm, O20x3.0mm determined by the transducer.
Calibration Block:                 Included
Range:                                1.5-200mm, 0.06-8inch (metric/imperial)
Resolution:                          0.1mm
Accuracy:                           ± (0.5%n+0.1)
Power Supply:                     4x1.5V AA(UM-3)battery
Battery Indicator:                 Low battery indicator
Operating Conditions:           0~45C(32F-104F),<=90%RH
Dimensions:                        160x68x32mm
Weight:                               218g

2. Note:
Minimum Order Quantity:     100pcs
Delivery Lead Time:             20 days
Payment Term:                   T/T in advance
