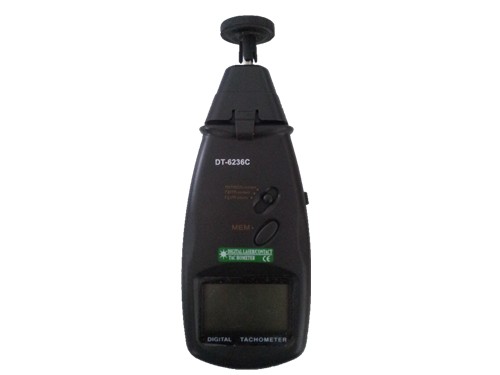

Digital Tachometer
Model: DT-6236C
¢ñ.Features:
1.The inserument is delicate and rugged,This tachometer used the durable,Long-Lasting components and a strong,light weight ABS plastic housing.The housing hasbeen Carefully shaped to fit comforeably in either hand.
2.This tachometer is used the micro computer(CPU)technique,photoelectrical technique,and junction Laswr technique for one instrument combine PHOTO TACH.(RPM)&CONTACT TACH.(RPM,m/min),&TOT.
3.Wide measuring range and Hight resolution.
4.High visible(no parallas)digital LCD display.
5.The last displayed value/max.Value/min.Value/may be automatically stored in memory and can be displayed by pressing MEMORY CALL BUTTON.
6.Low battery voltage indication.
¢ò.Specifications
1.Display:5 digits, 15mm (0.6")LCD
2.Accuracy:¡À(0.05%+1digit)
3.Sampling Time:0.5sec(over 120RPM)
4.Range select:Auto-Ranging
5.Memory:The max.Value/Min.Value/Last Displayed Value will be automaticlly stored in memory.
6.Detecting Distance:50mm to 500mm(PHOTO).
7.Time Base:Quartz crystal.
8.Power Consumption:Approx 50mA.
9.Battery:4*1.5V AA Size Battery.
10.Operation Temp:0¡æ¡«50¡æ
11.Dimension:160*72*37mm
12.Weight:30g(including battery)
13.Accessories:
Carrying case..............1pc.
Reflecting tape marks......(700mm)
Operation manual...........1pc.
|
