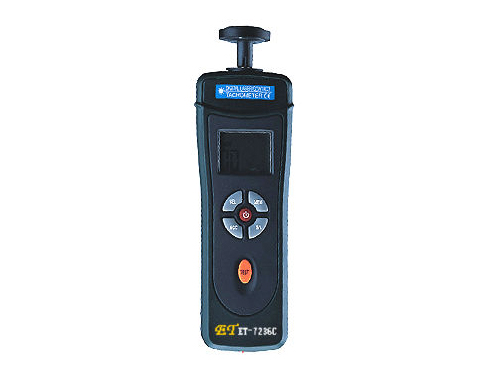

Tachometer
Model:ET-7236C
1. Product Specification:
Display: Yellow green backlight LCD
Accuracy: ¡À(0.05%+1digit)
Sampling Time: 0.5sec (over 120RPM)
Range Selected: Auto-Ranging,Auto-power off
Memory: Last Value, Max. Value and Min. Value
Data Stored: Can store 96s
Measuring Range: 2.5 to 99,999RPM (Photo TACH)
0.5 to 19,999RPM (Contact TACH)
0.1 to 9,999.9m/min Surface Speed (m/min)]
Resolution: 0.1RPM (2.5 to 999.9RPM) (Photo TACH)
1RPM (over 1,000RPM) (Photo TACH)
0.1RPM (0.5 to 999.9RPM) (Contact TACH)
1RPM (over 1,000RPM) (Contact TACH)
0.01m/min (0.05 to 99.99m/min) (Surface Speed)
0.1m/min (over 100m/min) (Surface Speed)
Detecting Distance: 50mm to 500mm (Laser)
Time Base: 6MHz Quartz crystal
Power Consumption:Approx. 55mA
Weight: 158g
Dimension: 183x61x42mm
Power: 4x1.5V battery
2. Packing Information:
Package: Gift Box
Carton Size: 43x42x28cm
Quantity / Carton: 50pcs
Net Weight/Gross Weight: 17/18KGs |
