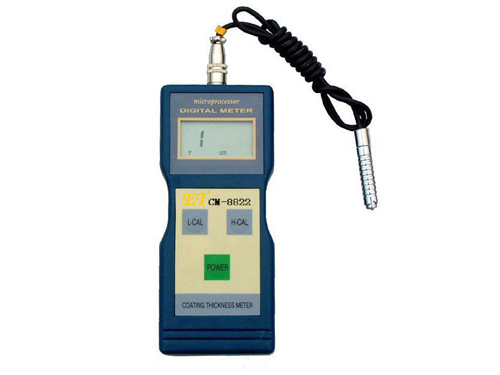

Coating Thickness Meter
Model: CM-8820F/N/FN
Product Specification:
Application:Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.Used in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Operating Principle: Magnetic induction (F)
Measuring Range:0~2000um
Resolution: 0.1/1
Accuracy: ¡À5%n or ¡À5um
Min. Measuring Area: 6mm
Min. Sample Thickness: 0.3mm
Metric/ Imperial: Convertible
Battery Indicator: Low battery indicator
Power Supply: 4x1.5V AA (UM-3)battery (auto power off)
Operating Conditions:0¡À45¡æ(32¨H~104¨H),¡Ü90%RH
Dimensions: 160x68x32mm
Weight: 210g(not including battery)
Optional Accessories: Other range 0-200um to 15000um |
