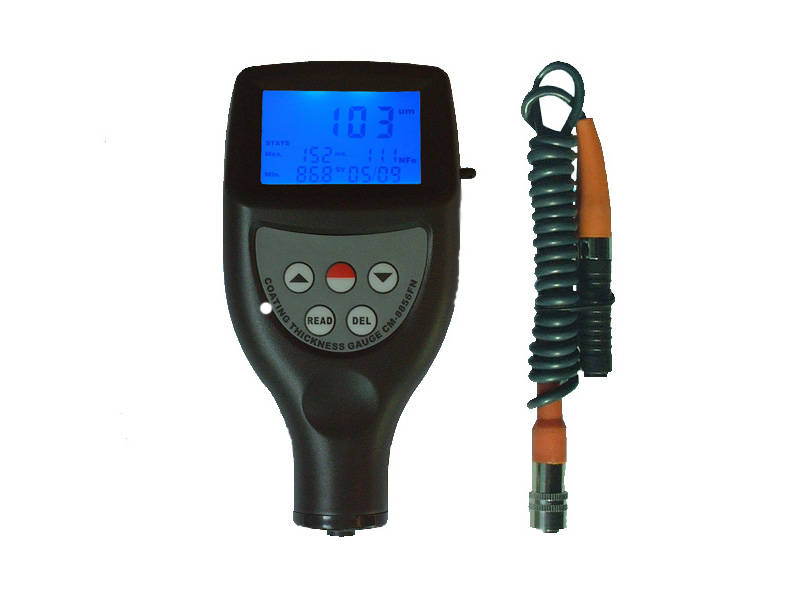

Coating Thickness Meter
Model:CM-8856F/N/FN
Product Specification:
1.Features:
* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint,plastic porcelain enamel, copper, zinc,aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . Often used to measure the thickness of galvanizing layer, lacquer layer,
porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.
* The N probes measure the thickness of non-magnetic coating and non-magnetic metals,it is used on anodizing, varnish, paint, enamel,plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc.
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement modes: Single and
Continuous
* Wide measuring range and high
resolution.
* Metric/Imperial conversion.
* Digital back display gives exact
reading with no guessing or errors.
* Can communicate with PC computer for statistics and print by the
optional cable.
* Can store 99 groups of measurements.
* Statistics is available.
2.Specifications:
Display: 4 digits LCD
Range: 0~1250 ¦Ìm/0~50mil (other ranges can be specified )
Min.Radius Workpiece: F: Convex 1.5mm/Concave 25mm
N: Convex 3mm/ Concave 50mm
Min. Measuring Area: 6mm
Min.Sample Thickness : 0.3mm
Resolution: 0.1 ¦Ìm (0~99.9¦Ìm); 1 ¦Ìm (over 100¦Ìm)
Accuracy: ¡À1~3%n or 2.5 ¦Ìm or 0.1mil (Whichever is the greater)
Battery Indicator: Low battery indicator.
PC Interface: with RS-232C interface
Power Supply: 2x1.5 AAA(UM-4) battery
Operating Condition: Temperature. 0~50¡æ .
Humidity: <95% .
Size: 126x65x35 mm; 5.0x2.6x1.6 inch
Weight: about 81g(not including batteries)
Standard Accessories:
Carrying Case: 1 pc
Operation Manual: 1 pc
F probe built-in: 1pc
NF probe built-in: 1 pc.
Calibration foils: 1set
Substrate (Iron): 1pc
Substrate (Aluminium):1pc
Optional Accessories: 1.RS-232C cable & software:
USB adaptor for RS-232C
2.Bluetooth interface |
