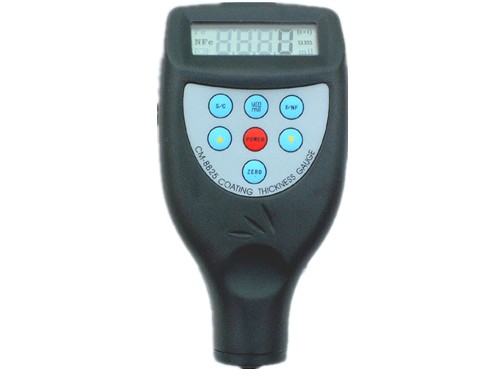

Coating Thickness Tester
Model: CM-8825F/N/FN
Product Specification:
Application:Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.Used in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Built-in probe(s)
Operating Principle: Magnetic induction/eddy current (F/NF)
Measuring Range:0~1250um/0~50mil
Resolution: 0.1/1
Accuracy: ¡À1~3%n or ¡À2.5um
Min. Measuring Area: 6mm
Min. Sample Thickness: 0.3mm
Battery Indicator: Low battery indicator
Metric/ Imperial: Convertible
Power Supply: 4x1.5V AAA(UM-4) battery (auto power off)
Operating Conditions:0¡À45¡æ(32¨H~104¨H),¡Ü90%RH
Dimensions: 126x65x27mm
Weight: 81g(not including battery)
Optional Accessories: Other range 0~200um to 15000um
1.RS-232C cable & software:
USB adaptor for RS-232C
2.Bluetooth interface |
