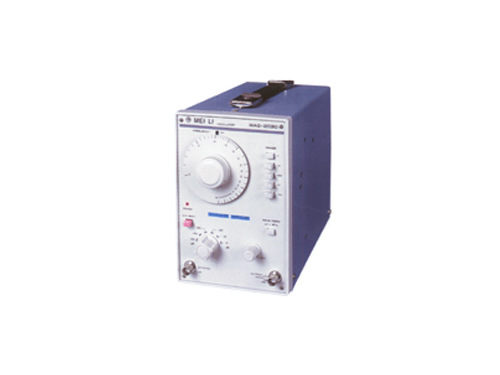

Specifications |
|
Oscillation Frequency |
x1 range: 10Hz to 100Hz
x10 range: 100Hz to 1KHz
x100 range: 1KHz to 10KHz
x1K range: 10KHz to 100KHz
x10K range: 100KHz to 1MHz |
|
Frequency Accuracy |
+/-3% +1Hz |
|
Output Impedance |
600¦¸ |
|
Output Attenuator |
0dB, 10dB, 20dB, 30dB, 40dB, 60dB
(6 ranges for selection)
(with an accuracy of +/-1dB under a load of 600¦¸) |
|
Characteristics of Sine Wave |
|
Output Voltage |
RR5Vrms |
|
Frequency Response |
10Hz to 1MHz: +/-0.5dB |
|
Distortion |
400Hz to 20KHz: ¡Ü0.1%
100Hz to 100KHz: ¡Ü0.3%
(100Hz: x10 range)
50Hz to 200KHz: ¡Ü0.5%
20Hz to 500KHz: ¡Ü1%
10Hz to 1MHz: ¡Ü1.5% |
|
Characteristics of Square Wave |
|
Output Voltage |
¡Ý10VP-P |
|
Rise/Down Time |
200ns (at maximum output) |
|
Duty Ratio |
45:55 (1KHz, at maximum output) |
|
Synchronizing Range |
¡Ü1% Vrms |
|
Input Voltage |
15V (DC+AC peak value) |
|
Normal Operation
Temperature/Humidity |
10ºC to 35ºC/within 85%RH |
|
Power Supply |
220V/110V +/-10%; 50Hz/60Hz |
|
Dimensions |
128(W) x 190(H) x 239(D) mm |
