Products > Automatic Function Test Equipment > Signal Generator

Model：MAG-450

Product Description：

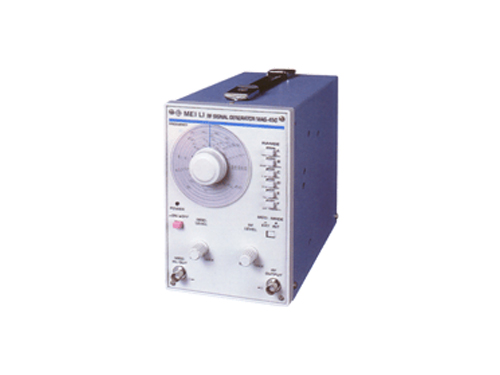

High Frequency Signal Generator

MAG-450

Features: Complete Japanese technologies and imported component assembly ensure minimum accuracy deviation.

Specifications
Frequency Channel	A: 100KHz-300KHz B: 300KHz-1MHz C: 1MHz-3.2MHz D: 3MHz-10MHz E: 10MHz-35MHz F: 32MHz-150MHz
Frequency Range	100KHz-150MHz (3nd harmonic wave up to 450MHz)
Frequency Accuracy	Over +/-3%
Output Waveform	RF/AM signal waveform
Output Impedance	600Ω
Radio Frequency Output	Over 100 mvrms (when frequency ≤35MHz)
Level Control	1mV-100mV
Internal Modulation	1KHz +/-2% >2vrms output
External Modulation	50Hz-20KHz for any setting
Normal Operation Temperature/Humidity	10ºC to 35ºC/within 85%RH
Power Supply	220V/110V +/-10%; 50Hz/60Hz
Dimensions	128(W) x 190(H) x 239(D) mm
