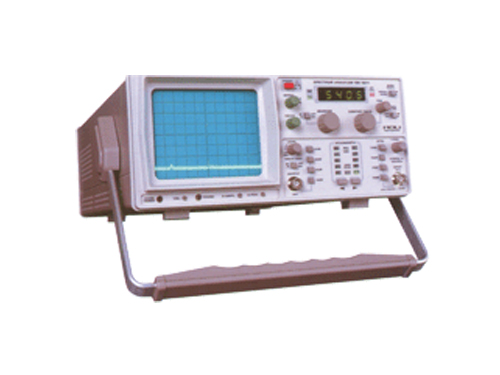

Spectrum Analyzer
SM-5011
Features: SM-5011 spectrum analyzer is used for the early test in the development of electrical products, troubleshooting of CATV/MATV system as well as the test and trouble diagnosis of cellular phone/paging systems. Combined with the near field probes of Mz530, it can detect the missing fields of radio frequency.
It is equipped with a tracing signal generator, and in the combined use of spectrum analyzer/tracing signal generator, it can complete the work which cannot be done by other frequency sweep system, such as sweep generator/network analyzer, sweep generator/spectrum analyzer, and sweep generator/oscilloscope, etc
|
Specifications |
|
Input Frequency Response |
0.15-1050MHz, 3Db |
|
Display Accuracy of
Central Frequency |
+/-200KHz (frequency sweep width +200KHz) |
|
Accuracy of Mark Frequency |
+/-0.1% (frequency sweep width +100KHz) |
|
Frequency Display Resolution |
100KHz (4½ bit LED display) |
|
Frequency Sweep Width |
0.1MHz/div-100KHz/div with 1, 2 and 5 step system
And 0Hz/div (0 frequency sweep) Accuracy: +/-10% (each range) |
|
Intermediate Frequency Bandwidth |
20KHz and 400KHz |
|
Video Filter |
(When on) 4KHz |
|
Amplitude Range |
-107~+13dB |
|
Reference Level |
-27dB~+13dB (10dB for every step) +/-2dB |
|
Average Noise Level |
-97dB(20KHz intermediate frequency width) |
|
Display Range of CRT Screen |
80 dB(10dB/div) |
|
Display Range of Vertical Display |
+/-2dB (2 With attenuator) 250MHz signal |
|
Input Attenuator |
0-40dB (4x10dB step) error: +/-1dB/10dB |
|
Maximum Input Level |
+10dBm,+25V DC(Input attenuator set at 0dB)
+20dBm (input attenuator set at 40dB) |
|
Frequency Stability |
Over 150KHz/hour |
|
Input Jack Type |
BNC |
|
Input Impedance |
50¦¸ |
|
Power Supply |
220V/110V; +/-10%; 50Hz/60Hz |
|
Tracing Signal Generator |
|
Input Frequency Response |
0.15-1050MHz, 3dB |
|
Output Level Range |
-50~+1dBm (4x10dB) +/-3dB |
|
Output Attenuator |
0-40dB (4x10dB step) error: +/-1dB/10dB |
|
Input Jack Type |
BNC |
|
Input Impedance |
50¦¸ |
|
Others |
|
DC Output |
+6V (for probe) |
|
AM Demodulation Output |
Load impedance ¡Ý16¦¸ |
|
