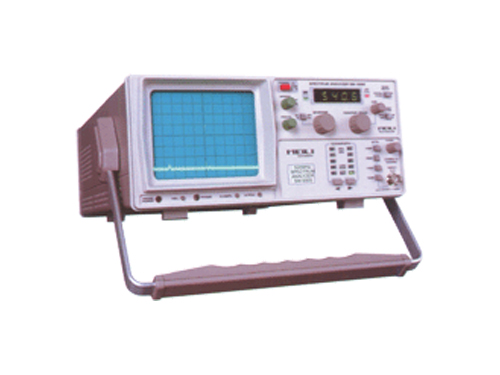

Spectrum Analyzer
SM-5005
Frequency Range: 0.1-500MHz
Output Impedance: 50¦¸
Output Jack: BNC
Input Capacitance: about 2PF
Maximum Input Level: +10dBm (according to frequency range), DC voltage: 20V
Power Supply Voltage: +6V DC Current:8mA(probe for magnetic field),24mA(probe for electric field)
Dimensions: 40x19x195mm
Mz530 probes are ideal tools for detecting the electromagnetic fields of radio frequency. They include resistance probes, magnetic field probes and electric field probes. They are indispensable tools for test in pre-accreditation of electromagnetic interference. When the probes are used with spectrum analyzer or measurement receiving unit, they can be used to find or define the electromagnetic interference wave, and at the same time can be used to evaluate the EMI of PCBs and newly developed sample units. They can help users to evaluate the performance comparison of the transmitting field after adding the shield. See the instruction manual of Mz530 for more details.
|
Specifications |
|
Input Frequency Response |
0.15-500MHz, 3dB |
|
Display Accuracy of Central Frequency |
+/-200KHz (frequency sweep width +200KHz) |
|
Accuracy of Mark Frequency |
+/-0.1% (frequency sweep width +100KHz) |
|
Frequency Display Resolution |
100KHz (4½ bit LED display) |
|
Frequency Sweep Width |
0.1MHz/div-100KHz/div with 1, 2 and 5 step system.
And 0Hz/div (0 frequency sweep) accuracy: +/-10% (each range) |
|
Intermediate Frequency
Bandwidth |
20KHz and 400KHz |
|
Video Filter |
(When on) 4KHz |
|
Amplitude Range |
-107~+13dB |
|
Reference Level |
-27dB~+13dB (10dB for every step) +/-2dB |
|
Average Noise Level |
-97dB(20KHz intermediate frequency width) |
|
Display Range of CRT Screen |
80dB(10dB/div) |
|
Display Range of
Vertical Display |
+/-2dB (2 With attenuator) 250MHz signal |
|
Input Attenuator |
0-40dB (4x10dB step) error: +/-1dB/10dB |
|
Maximum Input Level |
+10dBm,+25V DC(Input attenuator set at 0dB)
+20dBm (input attenuator set at 40dB) |
|
Frequency Stability |
Over 150KHz/hour |
|
Input Jack Type |
BNC |
|
Input Impedance |
50¦¸ |
|
Power supply |
220V/110V +/-10%; 50Hz/60Hz |
|
Others |
|
DC Output |
+6V (for probe) |
|
AM Demodulation Output |
Load impedance ¡Ý16¦¸ |
|
