Products > Automatic Function Test Equipment > DC/AC Power Supply

Model：MCH-302D

Product Description：

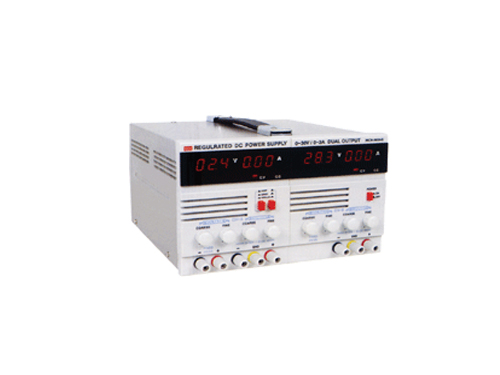

DC/AC Power Supply

MCH-302D

Dual Outpout

With fixed 5V/1A

MCH-302DII(30V /2A)

MCH-303DII(30V /3A)

MCH-305DII(30V /5A)

Specifications
Voltage		0 to Described Continuously Variable
	Stability	Voltage: ≤0.01%+2mV Load: ≤0.0%+2mV
	Recover Time	≤100μS
	Ripple & Noise	≤1MVRMS(efficient)
	Temperature Factor	≤300PPM/^oC
Current		0 to Described Continuously Variable
	Current, Load Stability	≤0.2%+3mA
	Ripple & Noise	≤3mArms
Working Condition	Line Power Supply	220V±10% 50/60Hz (Alterable if needed :110±10%50/60Hz)
	Operating	Temperature:-10^oC~40^oC Moisture≤90%
	Storage	Temperature:-20^oC~80^oC Moisture≤80%
