Products > Automatic Function Test Equipment > Millivoltmeter

Model：MVT-172D

Product Description：

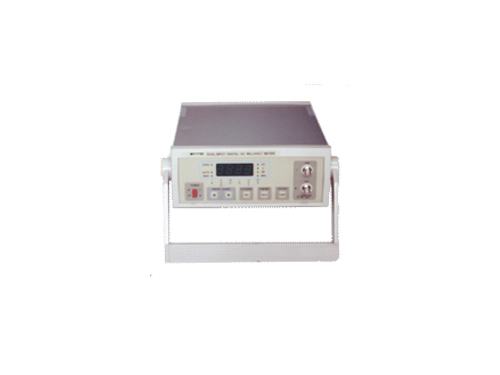

Digital Millivoltmeter

MVT-172D

Features: 100uV~400V measuring voltage/10Hz~2MHZ measuring frequency,max up to 5MHz/Auto and manual mode of measuring/Measuring ranges:mv/v/db/dbm/CH1 and CH2 selectable/high quality Tact Switches provide excellent control and reliability/Power supply:AC 220V(110v optional)

Specifications
Measuring Range	Voltage:30uv~300v db: -79~50db dbm:-77~52dbm (0dbm=1mv,60 Ω)

Frequency Range	5HZ~2MHZ
Voltage Error	5Hz to 2MHz: ±4%±20digit 20Hz to 500KHz:±2. 5%±10digit 50Hz to 100KHz:±1.5%±8digit Readout at 1KHz as reference
dB Error	Voltage error ±1digit
dBm Error	Voltage error ± 1 digit
Input Impedance	1MΩ ± 10%, 30pF
Resolution	1uV
Noise	Less than 15digit (30mV~300V)
Ambient	10·C~40·C85%RH
Power Supply	220v/110v ±10%: 50Hz/60Hz
Weight	3Kg
Dimension	88(w)x255(h)x274(d)mm
