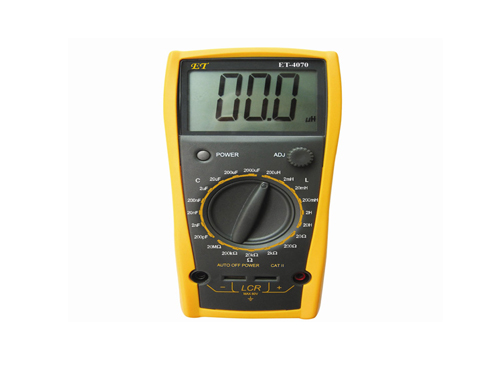

LCR Meter
ET-4070
Display: LCD display, Max. 1999
Inductance Measure: 0.1uH~20H
Capacitance Measure: 0.1pF~2000uF
Resistance Measure: 0.01ohm~20Mohm
Zero Adjust: Capacitance under 20nF is manual ministrant zero adjust.
Over Range: Display"1"
Sampling Rate: 0-5s
Working Temperature: 0~40C
Relative Humidity : Less than 80%
Meter Size: 185mm×93mm×35mm
Weight: 290g
Power Supply: One 9V battery
Capacitance:
|
Range |
Resolution |
Accuracy |
|
200pF |
0.1pF |
±(2.5%+5) |
|
2nF |
1pF |
|
20nF |
10pF |
|
200nF |
100pF |
|
2UF |
1000pF |
|
20UF |
0.01UF |
|
200UF |
0.1UF |
|
2000UF |
1UF |
±(3.0%+5) |
Inductance :
|
Range |
Resolution |
Accuracy |
|
200uH |
0.1uH |
±(2.0%+5) |
|
2mH |
1uH |
|
20mH |
10uH |
|
200mH |
100uH |
|
2H |
1mH |
|
20H |
10mH |
±(4.0%+10) |
Resistance:
|
Range |
Resolution |
Accuracy |
|
20ohm |
0.01ohm |
±(1.0%+5) |
|
200ohm |
0.1ohm |
±(0.8%+2) |
|
2kohm |
1ohm |
|
20kohm |
10ohm |
|
200kohm |
100ohm |
|
20Mohm |
10kohm |
±(2.0%+5) | |
