Products > Automatic Function Test Equipment > LCR Meter

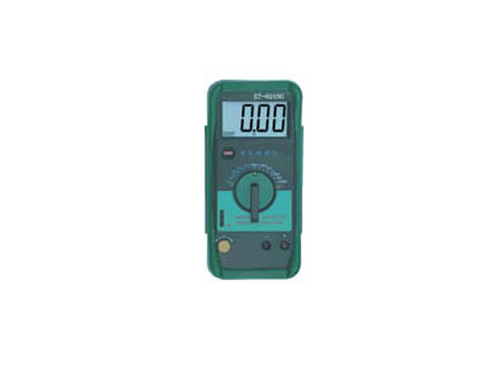

Model：ET-4070G/6243G/6013G

Product Description：

LCR Meter

ET-4070G/6243G/6013G

Specifications
Model	ET-4070G	ET-6243G	ET-6013G
Capacitance/Accuracy	200P/2n/20n/200n/2µ/20µ/200µ/2000µF	2000P/20n/200n/2µ/20µ/200µ/2000µF	200P/2n/20n/200n/2µ/20µ/200µ/2000µ/20000µF
Capacitance/Accuracy	±(2%+5)	±(2%+5)	±(0.5%+10)
Inductance/Accuracy	200µ/2m/20m/200m/2/20H	2m/20m/200m/2/20H	-
Inductance/Accuracy	±(2%+5)	±(2%+5)
Resistance/Accuracy	20/200/2K/20K/200K/2M/20MΩ	-	-
Resistance/Accuracy	±(0.8%+2)
Data Hold	Yes	Yes	Yes
Function Symbol Display	Yes	-	-
LCD Background Light	Yes	-	-
Low Battery Warning	Yes	Yes	Yes
LCD MAX. Value	1999	1999	1999
LCD Screen Size	49 x 60mm	36 x 65mm	36 x 65mm
