Products > Automatic Function Test Equipment > LCR Meter

Model：MCH-6200

Product Description：

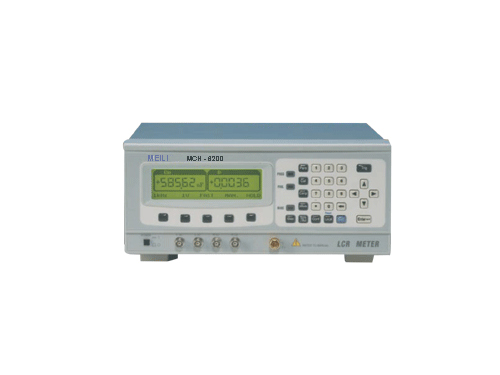

LCR Meter

MCH-6200

|Z | R X: 0.01mΩ~100.00MΩ

|Y| G B: 0.0001nS~1000.0S

Cs Cp : 0.01pF~1F

Ls Lp : 0.01µH~100KH

D: 0.0001~9.9999

DCR : 0.01mΩ~100.00mΩ

Δ: -999.99%~999.99%

θ: -180º~+180.00º

Specifications
Test Speed	Fast	5 times/sec
	Medium	3 times/sec
	Slow	2 times/sec
Accuracy	0.1%
Comparator	Higher and lower limits setting
Test Frequency	100Hz to 200kHz in totally 390 bands.
AC Test Signal Error	50mV 100mV 250mV...1Vms
DC Test Signal Error	0. 5V
Offset Voltage	2V
Test Mode	Auto, Hold
Display	240X64 Matrix
Connection	4 BNC terminals
Interface	RS-232, GPIB
Power Supply	AC110V or 220V ± 10% , 50/60Hz
