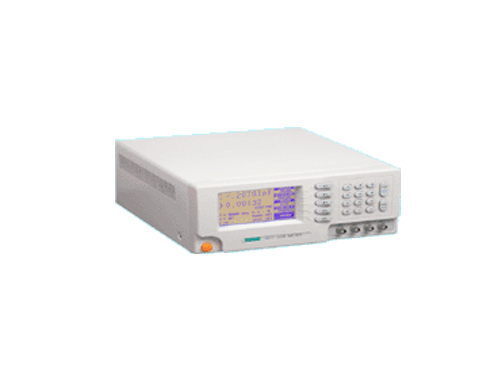

LCR Meter
MCH-2817
It is a high accuracy, wide measuring range impedance tester.,with test frequency up to 100kHz, three test signal levels and capacity of measuring parameters such as resistance(R), capacitance(C), inductance(L) and etc. It's equipped with a 240 ¡Á 128 dot , back-lighted LCD display which provides user friendly interface for measurement and operation.
|
Specifications |
|
Measuring Parameters |
L,C,Z,X,R,G,B,D,Q,¦¤%,¦È |
|
Test Frequency |
100Hz,120Hz,1kHz,10kHz,20kHz,40kHz,50kHz,100kHz |
|
Level |
0.1 Vrms ,0.3 Vrms ,1.0 Vrms |
|
Accuracy |
0.02% |
|
Display Range |
L 0.00001µH - 99999H
C 0.00001pF - 99999µF
Z, X, R 0.00001¦¸ - 99999M¦¸
G, B 0.00001 µ S - 99999S
D, Q 0.00001 - 999999
¦¤ % 0.00001% - 99999%
¦È Deg-179.99 - 179.999 0 Rad-3.1415 - 3.14159 |
|
Sampling Rate |
Continuous, Single |
|
Equivalent Circuit |
Series, Parallel |
|
Test Mode |
Auto, Hold |
|
Calibration |
Open circuit, Short circuit, Freq. point and Sweep zeroing |
|
Test Speed |
Fast, Medium, Slow |
|
Display Mode |
Direct, ¦¤, ¦¤% |
|
Operating Ambient |
Temperature: 10C¡ã - 30C¡ã,Humidity: =80% RH(For accurate measuring); Temperature: 0C¡ã- 40C¡ã,Humidity: =90% RH(For operation only) |
|
Power Supply |
220V(1¡À10%), 50Hz (1¡À5%) |
|
Power Consumption |
=60W |
|
Dimension |
330 mm ¡Á 150 mm ¡Á430 mm |
|
Weight |
Approx. 6.5 kg | |
