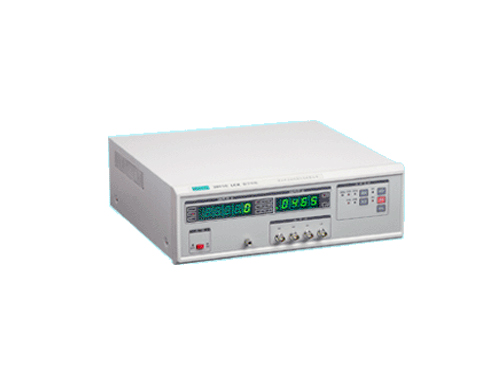

LCR Meter
MCH-2811C
R : 0.0001 ¦¸ - 99.99 M¦¸
C : 0.01 pF ¡ª 19999 µF
L : 0.01 µH ¡ª 9999 H
D : 0.0001 ¡ª 9.999
Q : 0.01 ¡ª 9999
|
Specifications |
|
Measuring Parameters |
L-Q , C-D , R-Q |
|
Test Frequency |
100 Hz , 1 kHz , 10 kHz |
|
Level |
0.3Vrms |
|
Accuracy |
0.25% |
|
Display Range |
R 0.0001 ¦¸-99.99 M¦¸
C 0.01 pF -19999 µF
L 0.01 µH -9999 H
D 0.0001 - 9.999
Q 0.01 - 9999 |
|
Sampling Rate |
5 times/sec. |
|
Equivalent Circuit |
Series, Parallel |
|
Test Mode |
Auto, Hold |
|
Calibration |
Open circuit, Short circuit and Zeroing |
|
Test Ports |
5 terminals |
|
Display Mode |
Direct readout |
|
Operating Ambient |
0C¡ã - 40C¡ã, =90% RH |
|
Power Supply |
AC110V or 220V ¡À 10% , 50/60Hz |
|
Power Consumption |
=20VA |
|
Dimension |
350 mm ¡Á 110 mm ¡Á 340 mm |
|
Weight |
Approx. 3.5kg | |
