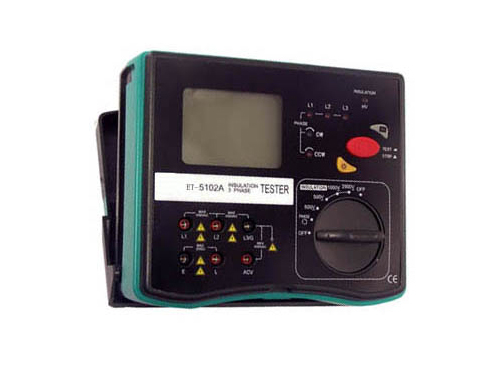

Insulation Resistance Tester
ET-5101A/ET-5102A
The brand new 510 Series instrument can measure insulation resistance, AC voltage and phase sequence. As a new generation all mighty electrical test instrument, we have successfully developed recently, it has made fundamental changes to the circuit industry of conventional insulation resistance.Aided by the nice and fashionable design, have more and stronger functions are easier to use and more reliable.
The instrument and accessories are all in the toolbox fit for field application It can be used to test the insulation resistance of power system electrical equipment lightning arrester equipment and measure AC voltage and phase sequence test.
Main Features
- Insulation resistance measurement
- Phase rotation check
- Voltage measurement
|
Specifications |
|
Insulation 3 Phase Tester |
|
Model |
ET-5101A |
ET-5102A |
|
Testing Voltage |
250/500/1000V |
500/1000/2500V |
|
Insulation Resistance |
0.1~20G¦¸ ¡À(3%+5) |
0.1~20G¦¸ ¡À(3%+5) |
|
Phase Rotation Check |
Yes |
Yes |
|
AC V |
700V ¡À(2%+5) |
700V ¡À(2%+5) |
|
Resolution |
0.01M¦¸ |
0.01M¦¸ |
|
Auto Range |
Yes |
Yes |
|
Function Symbol Display |
Yes |
Yes |
|
Data Hold |
Yes |
Yes |
|
Low Battery Warning |
Yes |
Yes |
|
Max. Display |
1999 |
1999 |
|
LCD Backlight |
Yes |
Yes | |
