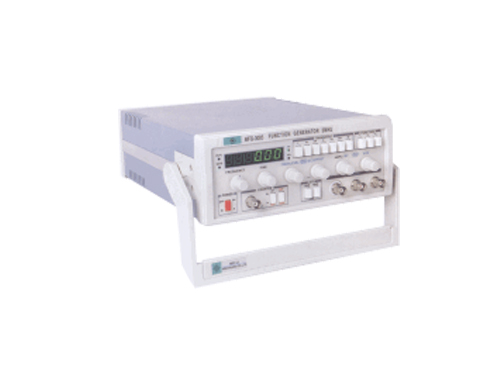

Specifications

Frequency

 MFG-3002: 0.1-2MHz

MFG-3005: 0.1-5MHz

Output Waveforms

Sine,Triangle,Square, Positive and Negative Pulse
Positive and Negativ Sawtooth

Output Impedance

50Ω ± 10%

Amplitude

Not less than 20Vp-p(open circuit)

DC Voltage

0 - ± 10V continuously adjustable

Symmetry Range

90:10 -- 10:90

Rising Edge of Square

MFG-3002: Less than 100ns

MFG-3005: Less than 50ns

Sine Waveform Characteristic

Distortion

10Hz-100KHz <1%

Frequency Response

0.1Hz to 100MHz : Less than ±0.5dB
100KHz to 2MHz(SM1641) : Less than ±1dB

TTL/CMOS Output

Level

TTL low level less than 0.4V in pulse wave , high level less than 3.5V.
CMOS low level less than 0.5V in pulse wave , high level 5V-14V continuously variable.

Rising Time

Less than 100ns

VCF Input

Output Voltage

 - 5V ~ 0V ± 10%

Max. Voltage Controlled

1000:1

Input Signal

DC-1KHz

Frequency Counter

Measure Range

1Hz-10MHz≥10VP-P

Input Impedance

≥ 1MΩ/ 20pF

Sensitivity

100mVrms

Max. Input

150V(AC+DC)

Input Attenuation

20dB

Accuracy

Less than 0.003% ± 1digit

Line Power

220V/110V ±10% ; 50Hz/60Hz

Dimension

310 ( W ) x 230 ( H ) x  90 ( D )mm
