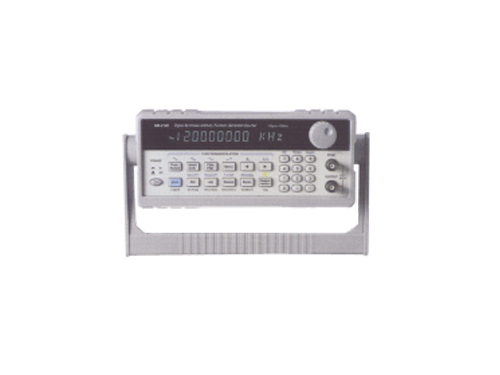

DDS Function Generator
SM-4000
It is a digital synthesis function generator/frequency counter with microprocessor, which has 100MHz equal accuracy design that provides higher accuracy reliability and more function than normal signal generator.
|
Specifications |
|
Output Frequency |
Sine and Square |
100uHz~10MHz/100uHz~20MHz/100uHz~40MHz
100uHz~80MHz/100uHz~120MHz |
|
Other waveforms |
100uHz~100KHz Triangle,Ramp,Pulse and others waveforms |
|
Output Amplitude |
1mVp-p~10Vp-p/2mVp-p~20Vp-p |
|
|
|
|
Output WaVeforms |
Sine,Square,Pulse,Triangle,Ramp,TTL pull,Sweep,FM,AM,Burst,FSK,PSK and others.more than twenty waveforms. |
|
Signal characteristics |
≤0.1% |
|
Triangle Linearity |
≤1% |
|
Square Rise |
≤25ns/ ≤15ns/≤15ns/≤15ns/≤15ns |
|
Frequency Measurement |
1Hz~100MHz |
|
Display |
12-character, highly visible VFD |
|
Memory |
10 different instrument states can be stored in non-volatile Memory |
|
