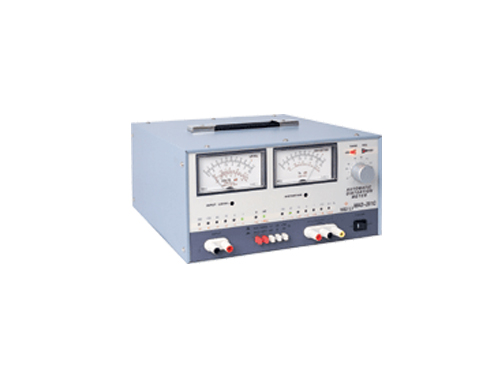

Distortion Meter
MAD-201C
Autorange and distortion measurement / Auto or hold function selectable/7 distortion ranges: 0.1%~20KHz continuously adjustable in 3 ranges/3 spot frequencies: 400Hz,1KHz, 10KHz/12AC ,Voltage Ranges: 1mvrms~300Vrms/Device of distortion measurement and combination of two single channel millivoltmeter/X axle and axle output enable observation of lissajou’s figure.
|
Specifications |
|
Description |
MAD-201C |
|
Measuring Range |
0.1%~100% 7steps error ≤3%(full scale) |
|
Fundamental Wave Range |
20Hz~20KHz three frequency points: 400Hz,1KHz,10KHz |
|
Input Level |
100mVrms~300Vrms |
|
Fundamental Wave Suppression |
›80dB |
|
Survival Distortion |
‹0.03%(including noise) |
|
Measuring Range |
1mVrms~300Vrms full scale |
|
Decibel Scale |
-60dB~+50dBrm Steps with 10dB/-20dB~+1dBm(0dB=1V)/-20dB~+3.2dBm(0dB=1mW 60Ω |
|
|
Frequency Response |
100mv~300V range 20Hz~200KHz, ±0.5dB/1mV~30mV range 20Hz~200KHz,±1dB |
|
|
Input Resistance |
100KΩ ±10% |
|
|
Output |
"X"axis output: Approx,1Vrms full scale of voltage |
|
|
"Y"axis output: Approx,500Vrms full scale of distortion |
|
|
Power Supply |
220V/110V ±10%:50Hz/60Hz |
|
|
Max,Input Voltage |
‹400V(DC+ACpeck) |
|
|
Weight |
5.5Kg |
|
|
Dimension |
310(w)x230(h)x90(d)mm |
|
|
Survival Noise
|
≤10uV(nput end grounded) |
|
|
Specifications subject to change for product improvement without prior notice. | |
