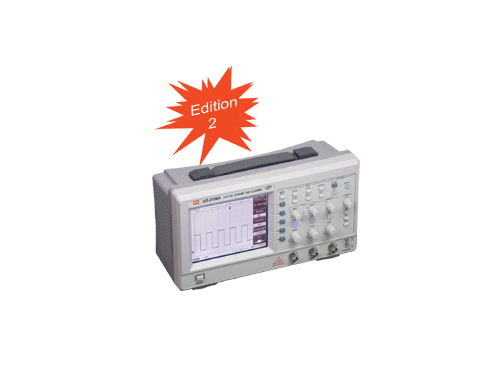

Features

Easy to read with color(CA models)or monochrome(A models) LCD display

Dual channels,bandwith 25-200MHz

Sample Rate(Real-time)1GSa/s, Equivalent Sampling 50GSa/s

4K channel memory depth

Advanced triggering function from edge, video, pulse, display

+ ,-,×,÷ mathematic functions

FFT spectrum analysis, Hanning,Hamming,Blacking,Rectangle

Automatic Parameter Measurements: Vpp,Vamp,Vrms,Vmax,Vmin,Vtop,Vbase,Vavg,

Freq,Period,Risetime,Falltime,±Width,Overshoot,Preshoot,±Duty, etc.

10 Waveforms parameter settings, Save, Recall

Can be controlled by PC with USB connection

Vertical Scale: 2mV ~ 5V/div

Time Base: 1ns ~ 50s/div

Rise Time: 1.8ns ~ 14ns

Power Supply:100 ~ 240V , 45 ~ 65Hz ,< 30W

Dimensions:330(W)×145(H)×150(D)
