Specifications |
|
Description |

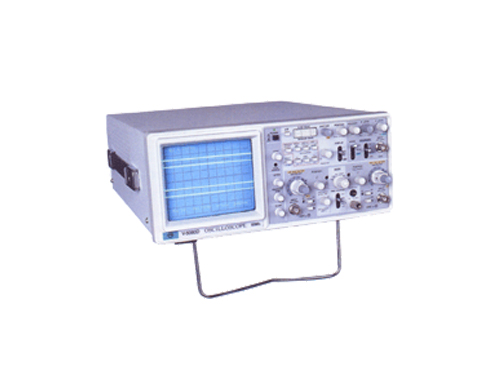

Model: V-5060D 60MHz digital readout oscilloscope |
|
Division line |
6" screen with internal division lines: 8x10 divisions(1 division=1CM) |
|
Phosphor powder |
P31 standard |
|
Accelerating voltage |
12KV |
|
Vertical deflection system |
|
Sensitivity |
CH1 or CH2:
2mV/division to 5V/division +/-3% (for 11 ranges), continuously adjustable
CH3: 0.1V/division |
|
Frequency |
DC-60MHz |
|
Rise time |
5.9ns |
|
Delay time |
Front edge can be observed |
|
Max. Input voltage |
400V (DC+AC peak value) when¡Ü1KHz |
|
Input coupling |
CH1, CH2,
AC, DC grounding
CH3, AC, DC |
|
Display mode |
CH1, CH2, CH3, superposition, alternation, intermittent |
|
Polar selection |
+/-(only CH2) |
|
X-Y operation |
X axle and Y axle selection |
|
Sensitivity |
X axle: CH1, CH2 2mV to 5V/division +/-5%
CH3: 0.1V/division +/-5% |
|
Y axle: 2mV to 5V/division +/-3% |
|
Phase difference |
¡Ü3º, DC-50KHz |
|
Bandwidth of X axle |
DC-500KHz (-3dB) |
|
Horizontal reflection system |
|
Triggering mode |
NORM mode, AUTO mode |
|
Scan mode |
Main scan, continuous delayed scan |
|
Triggering source |
CH1, CH2, VERT, EXT |
|
TV trigger |
External synchronous separation circuit |
|
Trigger level
AUTO
NORM |
Adjustable range
Automatically synchronized to trigger signal
+/-4 divisions |
|
Slope |
+/- |
|
Scan time |
A: 50ns/division to 5s/division
B: 50ns/division to 50s/division |
|
Accuracy |
x1: 10ºC to 35ºC +/-3% ; 0ºC to 50ºC +/-4%
x10: 10ºC to 35ºC +/-4% ; 0ºC to 50ºC +/-6% |
|
Scan expansion width |
x10 |
|
Maximum scan |
50ns |
|
HOLD OFF time |
Adjustable |
|
Delay time |
1us to 5s |
|
Readout time |
Vertical axle: V/DIV, UNCAL, probe factor
Scan speed: S/DIV, UNCAL, MAG |
|
Cursor readout function |
¦¤V, ¦¤T, ¦¤1/T |
|
Correction waveform |
Frequency: 1KHz 20%
Voltage: 0.5V 1% |
|
Power supply |
220V/110V +/-10%; 50/60Hz |
|
Dimensions |
310(W) x 130(H) x 370(D)mm |
|
Weight |
9kg |
|
Environmental
Temperature |
During operation: 0ºC to 40ºC
Safe operation temperature: 10ºC to 35ºC
Storage temperature: -20ºC to 70ºC |
|
Humidity |
Measurement: 35-85%RH
Storage: 45-85%RH |
|
Specifications subject to change for product improvement without prior notice. |
