Products > Instrument&Meter

Model：ET-3101A/3102A

Product Description：

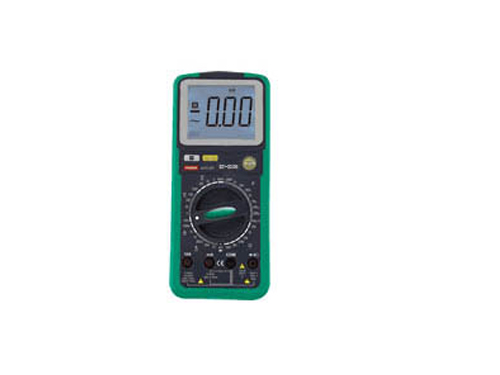

Digital Multimeter

Model:ET-3101A/3102A

Product Specification:

Features

Data hold / Auto power off / Continuity buzzer
LCD background light

Specifications
Digital Multimeter
Model	ET-3101A	ET-3102A
DC V	200m/2/20/200/1000V ±(0.5%+1)	200m/2/20/200/1000V ±(0.5%+1)
AC V	200m/2/20/200/750V ±(1%+3)	200m/2/20/200/750V ±(1%+3)
DC A	2m/20m/200m/10A ±(1%+1)	20m/200m/10A ±(1%+1)
AC A	2m/20m/200m/10A ±(1%+3)	20m/200m/10A ±(1%+3)
Resistance	200/2K/20K/200K/2M/20M/200MΩ ±(1%+1)	200/2K/20K/200K/2M/20MΩ ±(1%+1)
Capacitance	2n/20n/200n/2µ/20µ/200µF ±(4%+3)	2n/20n/200n/2µ/20µ/200µF ±(4%+3)
Frequency	-	2K/20K Hz ±(1.5%+5)
Temperature	-	-40°C~1000°C ±(1%+3)
Diode Test	Yes	Yes
Continuity Buzzer	Yes	Yes
Data Hold	Yes	Yes
Function Symbol Display	Yes	Yes
LCD Background Light	Yes	Yes
10A Fuse	Yes	Yes
Voltage Test Input Impedance	10MΩ	10MΩ
Low Battery Warning	Yes	Yes
Auto Power Off	Yes	Yes
LCD MAX. Value	1999	1999
LCD Screen Size	49mmx60mm	49mmx60mm
