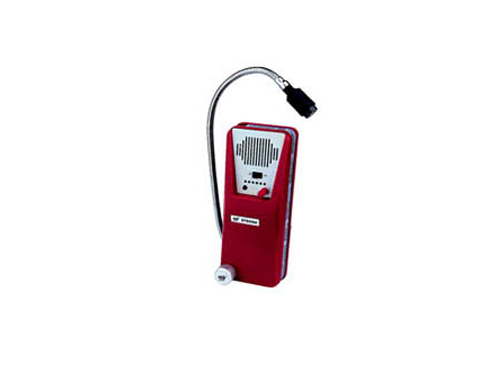

Gas Detector
Model:ET-LDP
Product Specification:
Features:
1.It is a kind of flammable gas leak detector with wide range.
2.The signal frequency of its sensor circuit will increase when the detector approaches flammable compound smoke or gas. It can effectively detect gas leak at extremely low level, for example,it can detect flammable gases with concentrations down to 50 ppm.
3.The detector consists of a portable kit, nickel, cadmium, battery and charger.
Specifications:
Sensitivity: Adjustable
Operating Status: Always adjustable
Power Supply: NiCd chargeable battery X 2
Power Duration: 4 hours
Dimension: 210x80x50 mm
Weight: 560g (including battery )
Applications:
1.Detect calor and gasoline leakage of vehicle.
2.Detect flammable gas, natural gas or residual gas used for gas pipe,propane charge station,cabin internal leakage.
3.Detect exit's safety, indoor air detection, exhaust gas and fuel detection ,heat exchanger leakage, check-up burning residue.
|
Part of Detectable List |
|
Item |
Minimum Detectable Concentration |
Item |
Minimum Detectable Concentration |
|
Ethine |
50ppm |
Propane |
500ppm |
|
Isobutane |
500ppm |
Ethene |
500ppm |
|
Methane |
500ppm |
Hydrogen |
500ppm |
|
Ethane |
50ppm |
Methyl Aether |
500ppm |
|
Methane |
50ppm |
Ammonia |
20ppm |
|
Chlorine |
1ppm |
Carbon Dioxide |
500ppm |
|
Vinyl Chlorine |
5ppm |
Methyl Chlorine |
5ppm |
|
Hydro Sulfide |
50ppm |
Acetone |
1ppm |
|
Carbon Monoxide |
500ppm |
|
| |
