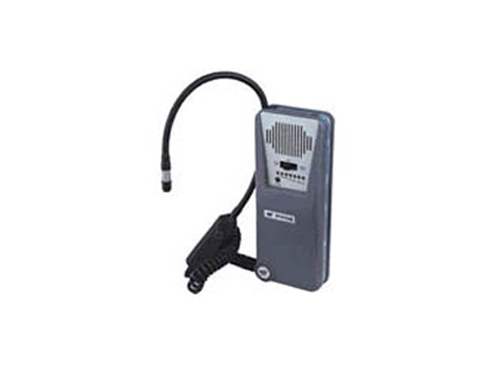

Gas Detector
Model:ET-5750A+
Product Specification:
Features:
1.Ergonomic design, comfortable handhold touch .
2.LCD and buzzer alarms
3.Self faulty detection of sensor during startup.
4.Li cells employed, recharging anywhere.
|
Model |
ET-5750A+ |
|
Detection |
Freon, benzene, alcohol, acetone |
|
Sensor |
Planar semiconductor |
|
Warm up time |
Less than 60 seconds |
|
Alarm |
20Hz ~ 5KHz |
|
Range of Alarm |
~1% LEL LED1 flashing, without buzzer |
|
~2% LEL LED2 flashing, with buzzer |
|
~5% LEL LED3 flashing, with buzzer |
|
~10% LEL LED4 flashing, with buzzer |
|
~20% LEL LED5 flashing, with buzzer |
|
Alarm Mode |
LED, buzzer |
|
Working Temperature |
-20¡æ~ 70¡æ |
|
Working Humidity |
Less than 90% RH |
|
Power Supply |
Li cell 3.7V 1100mA/h |
|
Indication of Charge |
10% red LED1 |
|
20% red LED2 |
|
30% red LED3 |
|
40% red LED4 |
|
50% red LED5 |
|
Indication of Sensitivity |
Level 0, red LED3 |
|
Level -1, red LED2 |
|
Level -2, red LED0 |
|
Level +1, red LED4 |
|
Level +2, red LED5 |
|
Dimension |
275x70x30 mm |
|
Weight |
approx. 220g |
|
Standard Accessories |
| |
