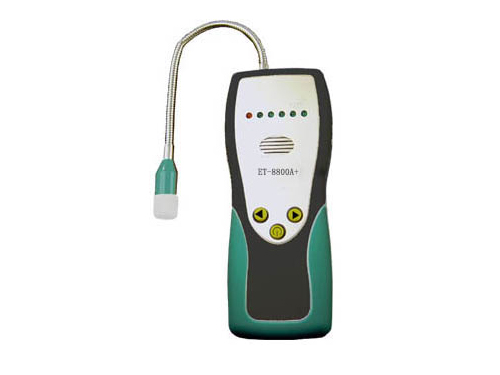

Gas Detector
Model:ET-8800A+
Product Specification:
This highly reliable broad range combustible gas detector is an extremely useful tool in any environment where gasoline, propane, natural gas, fuel oil and many other explosive gases may be present.
As a combustible gas or vapor source is approached, an audible signal increases in frequency and the red lights illuminate in sequence, and show the intensity of the leak. Now you can see,hear and find dangerous leaks. The unique flexible probe can make you access to gas leaks in order to reach places.
Features:
Ergonomic design, comfortable handhold touch.
LCD and buzzer alarms.
Self faulty detection of sensor during startup.
Li cells employed, recharging anywhere.
|
Model |
ET-8800A+ |
|
Detection |
Natural gas, LPG, artificial gas, etc. |
|
Sensor |
Planar semiconductor |
|
Warm Up Time |
Less than 60 seconds |
|
Alarm |
20Hz ~ 5KHz |
|
Range of Alarm |
~1% LEL LED1 flashing, without buzzer |
|
~2% LEL LED2 flashing, with buzzer |
|
~5% LEL LED3 flashing, with buzzer |
|
~10% LEL LED4 flashing, with buzzer |
|
~20% LEL LED5 flashing, with buzzer |
|
Alarm Mode |
LED, buzzer |
|
Working Temperature |
-20C ~ 70C |
|
Working Humidity |
Less than 90% RH |
|
Power Supply |
Li cell 3.7V 1100mA/h |
|
Indication of Charge |
10% red LED1 |
|
20% red LED2 |
|
30% red LED3 |
|
40% red LED4 |
|
50% red LED5 |
|
Indication of Sensitivity |
Level 0, red LED3 |
|
Level -1, red LED2 |
|
Level -2, red LED0 |
|
Level +1, red LED4 |
|
Level +2, red LED5 |
|
Dimension |
275x70x30 mm |
|
Weight |
approx. 220g |
|
Standard Accessories |
| |
