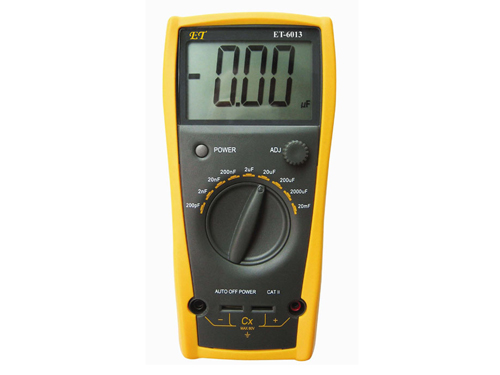

Capacitance Meter
Model:ET-6013
Product Specification:
Display: LCD, Max. display 1999.
Range: 9 range, whole range value (from 0.1pF to 20mF)
Calibrating Adjustment: Have two internal adjustments:One is paneling zero adjustment.
Zero Adjustment: Manual (range:+-20pF)
Sampling Time: 0~5 second
Operating Temperature: 0¡æ to 40¡æ.
Operating Humidity: 80% MAX.R.H.
Power Supply: 9V Battery
Typical Consumption Current: 3~4mA (Range: 200pF~200uF)
|
Range |
Resolution |
Test Frequency |
Max indication Value |
|
200pF |
0.1pF |
800Hz |
199.9pF |
|
2nF |
1pF |
800Hz |
1.999nF |
|
20nF |
10pF |
800Hz |
19.99nF |
|
200nF |
100pF |
800Hz |
199.9nF |
|
2uF |
1000pF |
800Hz |
1.999uF |
|
20uF |
0.01uF |
80Hz |
19.99uF |
|
200uF |
0.1uF |
8Hz |
199.9uF |
|
2000uF |
1uF |
8Hz |
1999uF |
|
20mF |
10uF |
8Hz |
19.99mF |
Temperature range for the accuracy guaranteed: 23¡æ¡À5¡æ
Accuracy: ¡À0.5%+1 digit (200pF~200UF)
¡À2%+1 digit (2000UF)
¡À2%+2 digit (20mF)
Excite Voltage: 2.8V peak value
Zero Adjust: Limit to 20pF
Overload Protection: Protected by a 0.2A/250V fuse. The capacitance will destroy the meter if the DCV is higher than 60V. |
