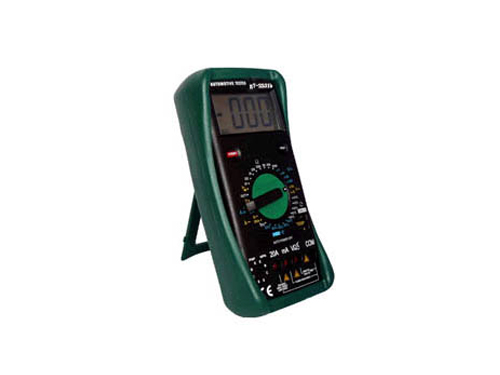

Auto Multimeter
Model:ET-2201B
Product Specification:
As a 3 1/2 digital automobile repairing multimeter, ET-2201B features:superior design, convenient operation, precise reading, complete functions, new style holster and big liquid crystal display.
In order to avoid misoperation, a mechanical protection device is applied to the current measuring jack. The ¡°mA¡± or ¡°20¡± A socket can be opened only when selecting current for measurement. Otherwise, they will be blocked to effectively avoid inserting wrong probe, enhancing the product safety and life.
ET-2201B can measure DC voltage and current, AC voltage and current, resistance, duty ratio, temperature, diode transistor, continuity, dwell angle of automobile distributor contact, and motor speed.
The product is suitable for automobile detection and servicing, engineering design, experimental test, productive experiment, etc and which is your ideal portable automobile repairing and maintaining tool.
Features:
- Structure Patent: Terminal sockets with automatic blocking system.
- Structure Patent Code: ZL 01 21 5021.5.
- Battery(12V) test .
- TACH / Temperature Test .
- DWALL.
- Frequency test
- Continuity buzzer / Data hold / Auto Power off.
- 9V(6F22) power supply .
|
Specifications |
|
Auto Multimeter |
|
Model |
ET-2201B |
|
Battery Test |
12 V ¡À(2.5%+10) |
|
DC V |
20/200/1000 V ¡À(0.5%+3) |
|
AC V |
20/200/700 V ¡À(1.0%+5) |
|
DC A |
20m/200m/20 A ¡À(1.0%+2) |
|
AC A |
20m/200m/20 A ¡À(1.5%+5) |
|
Resistance |
200/20K/200K/200M ¦¸ ¡À(1.0%+1) |
|
Temperature |
-40¡æ~1000¡æ ¡À(1.0%+3) |
|
Party cycle |
1%~90% |
|
TACH |
3/4/5/6/8CYL ¡À(1.5%+5) |
|
DWALL |
3/4/5/6/8CYL ¡À(1.5%+5) |
|
Diode Test |
Yes |
|
Transistor Test |
Yes |
|
Continuity Buzzer |
Yes |
|
Data Hold |
Yes |
|
Auto Power Off |
Yes |
|
LCD MAX. Value |
1999 |
|
Terminal sockets with automatic blocking system |
Yes |
