Auto Multimeter |
|
MODEL |
ET-2201A |
ET-2201 |
|
DC V |
2/20/200/1000 V ¡À(0.5%+3) |
2/20/200/1000 V ¡À(0.5%+3) |
|
AC V |
2/20/200/700 V ¡À(1.0%+3) |
2/20/200/700 V ¡À(1.0%+3) |
|
DC A |
200m/20 A ¡À(1.0%+2) |
20m/200m/20 A ¡À(1.0%+2) |
|
AC A |
200m/20 A ¡À(1.5%+3) |
20m/200m/20 A ¡À(1.5%+2) |
|
Resistance |
20/200/2k/20K/200K/2M/20M/200M ¦¸ ¡À(1.0%+1) |
200/20K/200K/20M ¦¸ ¡À(1.0%+3) |
|
Temperature |
-40¡æ~1000¡æ ¡À(1%+3) |
-40¡æ~1000¡æ ¡À(1%+3) |
|
Party cycle |
1%~90% |
1%~90% |
|
TACH |
3/4/5/6/8CYL ¡À(1.5%+5) |
3/4/5/6/8CYL ¡À(1.5%+5) |
|
DWALL |
3/4/5/6/8CYL ¡À(1.5%+5) |
3/4/5/6/8CYL ¡À(1.5%+5) |
|
Diode Test |
Yes |
Yes |
|
Transistor test |
Yes |
Yes |
|
Continuity buzzer |
Yes |
Yes |
|
Data Hold |
Yes |
Yes |
|
Auto Power Off |
Yes |
Yes |
|
LCD MAX. Value |
1999 |
1999 |
|
Terminal sockets with automatic blocking system |
- |
Yes |

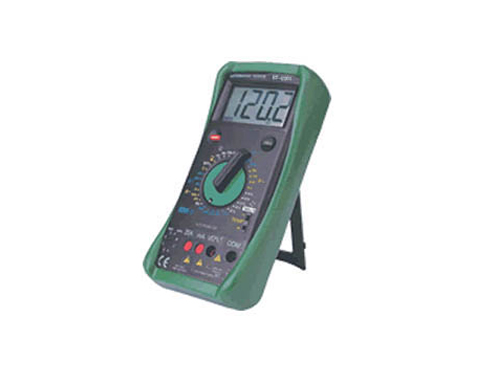

As a 3 1/2 digital automobile repairing multimeter, ET-2210/ET-2201A features:Superior design, convenient operation, precise reading, complete functions, new style holster and big liquid crystal display.
In order to avoid misoperation, a mechanical protection device is applied to the current measuring jack. The ¡°mA¡± or ¡°20¡± A socket can be opened only when selecting current for measurement. Otherwise, they will be blocked to effectively avoid inserting wrong probe, enhancing the product safety and life.
ET-2210/ET-2201A can measure DC voltage and current, AC voltage and current, resistance,duty ratio, temperature, diode transistor, continuity, dwell angle of automobile distributor contact, and motor speed.
They are suitable for automobile detection and servicing, engineering design, experimental test, productive experiment, etc and which are your ideal portable automobile repairing and maintaining tool.
Main Features:
- Structure Patent: Terminal sockets with automatic blocking system (DY2201).
- Structure Patent Code: ZL 01 21 5021.5 (DY2201).
- TACH / Temperature Test.
- DWALL
- Rich resistance measuring ranges.
- Continuity buzzer / Data hold / Auto power off .
- 9V(6F22) power supply.
General Characteristics:
|
Power Supply |
6F22(9V) |
|
Product Size |
200x85x38 mm |
|
Product Net Weight |
700g |
|
Standard Individual Packing |
Gift box |
|
Standard Quantity per Carton |
20 pcs |
|
Measurement of Standard Carton |
480x370x335mm (0.059 CBM) |
|
Gross Weight of Standard Carton |
18KGs |
|
