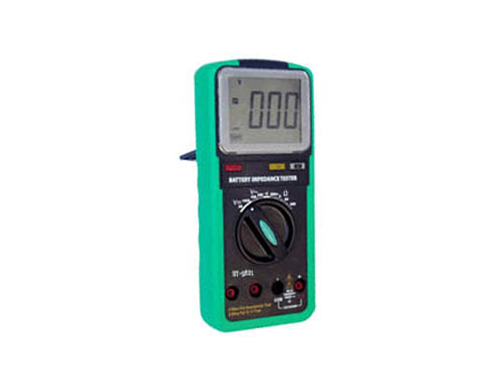

Battery Impedance Tester
Model:ET-2501
Product Specification:
As a handhold multifunction meter, the brand new double-color plastic injection. digital battery impedance tester, the product can measure the internal resistance of various batteries, such as dry battery, storage battery, automobile battery, mobile phone battery and USB battery.
The meter adopts vector measuring technique and 4-terminal measuring method, which can correctly measure the real internal resistance value of batteries. It consumes a small amount of energy and effectively, rapidly and correctly measure battery resistance up to 1m. It also can measure DC and AC voltage.
Superior design, convenient operation, precise reading, complete functions, pleasing and practical double-color plastic injection housing and super large LCD display. It is suitable for engineering design, experimental test, outdoor work, automobile battery repairing, etc and it is your ideal measuring tool.
Features:
- Automotive Battery Impedance Testing.
- Automotive 12V Testing.
- Continuity buzzer / Data hold .
- LCD background light.
- 9V(6F22) power supply.
|
Specifications |
|
Battery Impedance Tester |
|
Model |
ET-2501 |
|
Resistance |
200m/2/20/200¦¸ ¡À(1.0%+5) |
|
Battery 12V testing |
20V(load resistance inside 120¦¸/2W) ¡À(2.5%+5) |
|
AC V |
700V ¡À(1.5%+10) |
|
DC V |
20/1000V ¡À(1.0%+3) |
|
Continuity Buzzer |
Yes |
|
Data Hold |
Yes |
|
Voltage Input Impedance |
1M¦¸ |
|
Low Battery Warning |
Yes |
|
LCD Backlight |
Yes |
|
LCD MAX. Value |
1999 | |
