Products > Instrument&Meter

Model：ET-3108

Product Description：

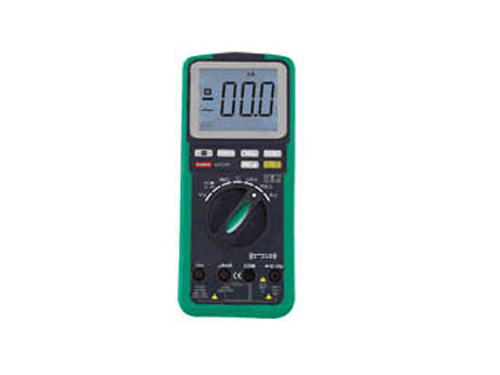

Digital Multimeter

Model:ET-3108

Product Specification：

Main Features:

Auto range.
Data hold / Auto power off / Continuity buzzer.
LCD background light.

Specifications
Digital Multimeter
Model	ET-3108
DC V	400m/4/40/400/1000V ±(0.8%+3)
AC V	4/40/400/750V ±(1%+5)
DC A	400µ/4000µ/40m/400m/4/10A ±(1%+2)
AC A	400µ/4000µ/40m/400m/4/10A ±(2%+5)
Resistance	400/4K/40K/400K/4M/40MΩ ±(1%+2)
Capacitance	5.12n/51.2n/512n/5.12µ/51.2µF ±(3%+5)
Frequency	5/50/500/5K/50K/500K/5MHz ±(0.1%+3)
Temperature	-40℃~1000℃ ±(1%+3)
Party Cycle	0.1%~99.9%
Diode Test	Yes
Continuity Buzzer	Yes
Data Hold	Yes
Relative Value Test	Yes
Function Symbol Display	Yes
LCD Background Light	Yes
10A Fuse	Yes
Voltage Test Input Impedance	10MΩ
Low Battery Warning	Yes
Auto Power Off	Yes
LCD MAX. Value	3999
LCD Screen Size	49mmx60mm
Auto Range	Yes
Auto/Manual Range Switch	Yes
