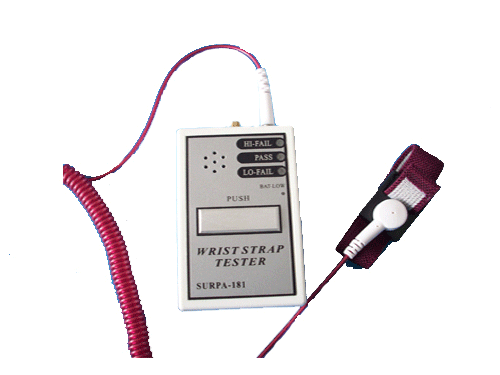

Easily measure the resistance of a wristband and cord or heel/toe grounder as worn by the operator. The SURPA-181 is available in two test ranges, USA standard (750 kilohms to 10 megohms) and European (900 kilohms to 35 megohms) and meets EN 10015/1 standard, for Europe.
To check wrist straps and other personal grounding equipment, first ensure that there is good contact to the wearer, then connect the coil cord to the SURPA-181 and press the TEST button. A green LED will indicate correct resistance and an audible buzzer will sound on pass. If the strap or coil fails the red LED will light. There is also a yellow LED to warn of low battery power.
• Hand held or wall-mounted
• Easy Pass/Fail indication
• Works with wrist straps and heel or toe grounders
