Calibration Unit

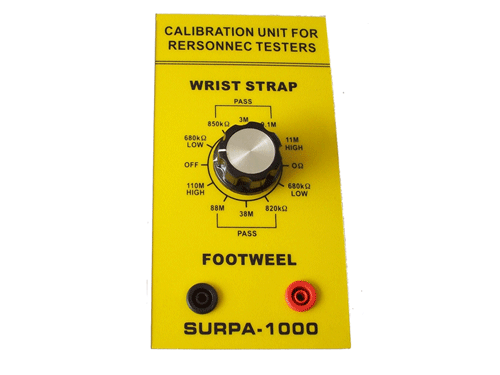

SURPA -1000

Our calibration units are designed to verify the threshold settings of all series testers.

The calibration unit SURPA-1000 is designed to verify testers calibrated to ANSI/ESD S1.1-1998andANSI/ESD STM9.1-2001.

For calibrating a wrist strap tester turn the knob to the upper part of the dial marked”wrist strap”,plugging the two equipped wire into the connection point,connect the needle of one wire into the socket of the wrist strap tester,the other wire needle touch the press button of the tester,between the pass range,Green LED will light.

For calibrating a footwear tester turn the knob to the lower part of the dial marked”footwear”, plugging the two equipped wire into the connection point,one wire needle touch the footplate,while the other is connected to the press button of the tester, between the pass range,Green LED will light.

Versatile, works with most makes of tester

Use to calibrate wrist strap, footwear or combined testers

Accuracy is +/- 3%

Dimensions:18x9.5x3.5cm

Weight:0.19kg

Resistances are set by factory as follows:

Measuring Range:
