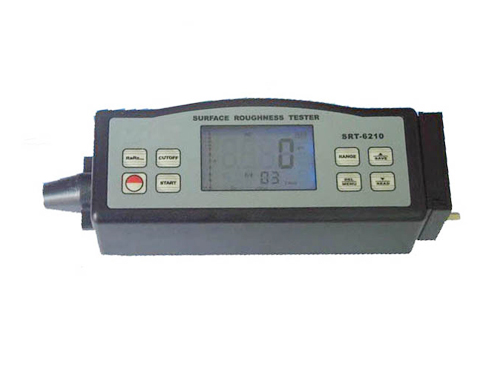

Surface Roughness Tester
Model:SRT-6210
Product Specification:
1.Feature: This instrument is compatible with four standards of ISO, DIN, ANSI and JIS and is widely used in productive site to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters.When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slided along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes,calculates and then outputs the measurement results on LCD.
* Very easy to operate .
* Multiple parameter measurement: Ra, Rz.
* Highly sophisticated inductance sensor.
* Built-in lithium ion rechargeable battery and control circuit with high capacity.
* Small in size, light in weight and easy to use.
* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface.
2.Specification:
Display: 4 digits, 10 mm LCD, with blue backlight
Parameters: Ra, Rz
Range: Ra: 0.05~10.00um/1.000~400.0uinch
Rz: 0.020~100.0um/0.780~4000uinch
Accuracy: Not more than 10%
Function of display value: Not more than 6%
Test Principle: Inductance type
Radius of Probe Pin: 0um
Material of Probe Pin: Diamond
Measurement Force of Probe: 16mN(1.6gf)
Probe Angle: 90¡ã
Vertical Radius of Guiding Head: 48mm
Max. Driving Stroke: 17.5mm/0.7inch
Cutoff Length (l): 0.25mm / 0.8mm / 2.5mm optional
Evaluation Length: 1~5 cut off optional
Driving Speed:
Sampling Length = 0.25mm Vt=0.135mm/s
Sampling Length = 0.8mm Vt=0.5mm/s
Sampling Length = 2.5mm Vt=1mm/s
Returning Vt=1mm/s
Resolution : 0.001¦Ìm If reading 10¦Ìm
0.01¦Ìm If 10¦Ìm¡Üreading 100¦Ìm
0.1¦Ìm If reading ¡Ý100¦Ìm
Power Li-ion Battery: Rechargeable
Operating Conditions: Temperature: 0~50¡æ Humidity: <80%
Size: 140x57x48 mm
Weight: About 420 g
Attachments:
|
