Products > Instrument&Meter > R&C Automatic Detection Pen

Model：ET-505A/ET-505B

Product Description：

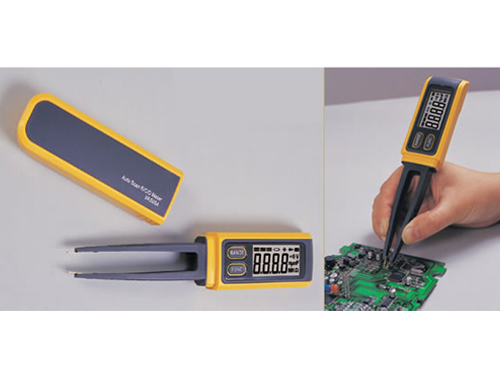

R&C Auto Detection Pen

Model : ET-505A/ET-505B

Product Specification:

Basic Function	Range		Accuracy
Resistance	300Ω/3KΩ/30KΩ/300KΩ/3MΩ/30MΩ 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ		±1%+5
Capacitance	3nF/30nF/300nF/3μF/30μF/300μF/3mF/30mF 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF		±3%+5
Auto Scan Mode	0~3MΩ/400pF~300μF		±1%+5
	0~6MΩ/400pF~600μF		±3%+5
Special Function		505A		505B
Auto Scan Mode( Resistance/Capacitance/Diode)		Yes		Yes
Continuity Check		Yes		Yes
Auto Power Off		Yes		Yes
Low Power Indication		Yes		Yes
Max. Display		2999		5999
Automatic recognize resistance, capacitance and diode
Measure high resistace and capacitance quickly
