Products > Infrared Thermometer > Infrared Thermometer for Metallurgy

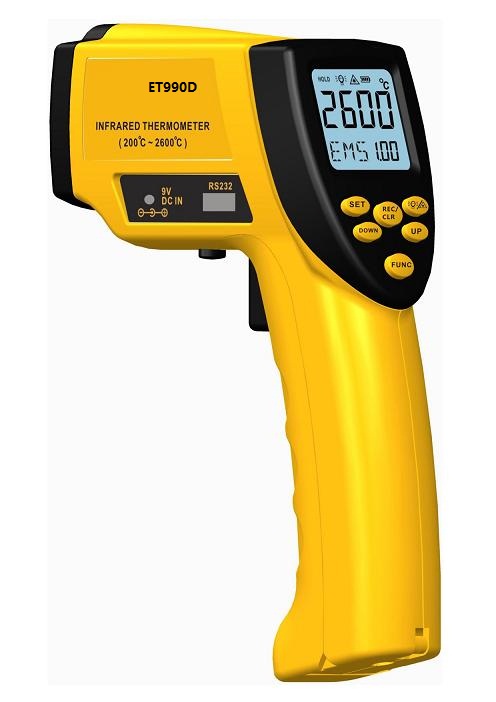

Model£ºET990D
Product Description£º

Brief Description:
ET990D specialized metallurgical infrared thermometer is specially developed for the metallurgical foundry industry's high-end infrared thermometer, ET990D using imported 0.9-1.7¦Ìm metallurgy special shortwave infrared sensors, 80:1 ultra long distances than can be safe and effective, fast stable measurement of molten steel, molten iron, copper and other high-temperature water, liquid metal, ET990D temperature range up to 2600 ¡æ, measurement accuracy and stability of the fully comparable with the imported foreign products, durable products, belonging to high-end top brand products!
Through optical research institutions with foreign cooperation, the use of high-end technology and liquid metal for metallurgical characteristics and through a lot of field experiments, the first to achieve stability through the glass can accurately measure the temperature of the liquid metal, to solve the vacuum furnace glass unable interval measurement problems, and can carry out a large area of the flame temperature measurement, infrared thermometer broke through the technical bottleneck.

Parameters
Model No. ET990D
Temperature Range 200¡æ-2600¡æ
392¨H-4172¨H
Accuracy ¡À1.5¡æ or 1.5%
Distance Spot Ratio 80£º1
Emissivity 0.10-1.00 adjustable
Repeatability ¡À0.5¡æ or 1%
Response Time 150ms
Resolution 1¡æ/1¨H
Wave Length 0.9¦Ìm-1.7¦Ìm
Power Supply 9V battery£¨6F22£©
LCD Size 45mm*37.5mm
Product Color yellow+black
Dimensions 204.7mmX143mmX57.6mm
Net Weight 276g
Accessories mainframe, warranty card, battery, manual, drive software CD, data cable
Qty/carton 12 pieces
Carton Size 52cmX43cmX32.5cm
Gross Weight/carton 13.7Kg
Special Functions
One key lock recording mode ¡Ì
RS232 input interface ¡Ì
Online real-time measurement ¡Ì
¡æ/¨H Selection ¡Ì
Laser Switch ¡Ì
Delay Display Time 8 seconds
Auto Power Off ¡Ì
Low Battery Indication ¡Ì
LCD Backlight Display ¡Ì
MAX Function ¡Ì
MIN function ¡Ì
DIF function ¡Ì
AVG function ¡Ì
Data storage ¡Ì
High temperature alarm setting function ¡Ì
Low temperature alarm setting function ¡Ì
