Thermometer

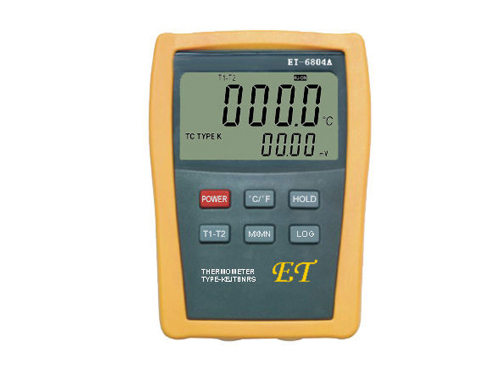

Model:ET-6804A
1. Specification:
1). Dual-channel temperature measuring,which can display T1,T2,T1-T2.
2). With the function of temperature measurement and output alarm.
3).Supporting 8 kinds of thermocouple: K,E,J,T,N,B,R,S .
4). C and F display.
5). Dual Display: It can display the input temperature Max./ Min/mV value.
6). With the Memory Function: Support manual memory about 2500pcs temperature points; support auto memory about 6000pcs temperature points, memory space can be adjusted, the longest memory time is about 99 hours.
|
Thermocouple Type |
Input Range |
Resolution |
Accuracy |
|
R |
-40~1760C |
1C |
-40~500C: ¡À(0.5%+2C)
500C~1760C: ¡À(0.4%+2C) |
|
S |
-20~1760C |
1C |
|
B |
400~1800C |
1C |
400C~800C: ¡À(0.5%+2C)
800C~1000C: ¡À(0.4%+2C)
1000C~1800C:+-(0.3%+2C) |
|
E |
-200~1000C |
0.1C |
-200C~0C: ¡À(0.3%+1C)
0C~500C: ¡À(0.3%+2C) |
|
K |
-200~1370C |
0.1C |
-200~0C: ¡À(0.3%+2C)
0C~800C: ¡À(0.3%+1C)
800C~1370C: ¡À(0.5%+2C) |
|
J |
-200~1200C |
0.1C |
-200~0C: ¡À(0.3%+1C)
0C~1200C: ¡À(0.3%+2C) |
|
T |
-200~400C |
0.1C |
-200~0C: ¡À(0.3%+1C)
0C~400C: ¡À(0.3%+2C) |
|
N |
-200~1300C |
0.1C |
-200~0C: ¡À(0.5%+2C)
0C~1300C:¡À(0.3%+2C) |
2. Packing Information:
Package: Gift Box
Carton Size: 46x 33x 43cm
Quantity / Carton: 60pcs
Net Weight/Gross Weight: 14/15KGs
3. Note:
Minimum Order Quantity: 60pcs
Delivery Lead Time: 20 days
Payment Term: T/T in advance |
