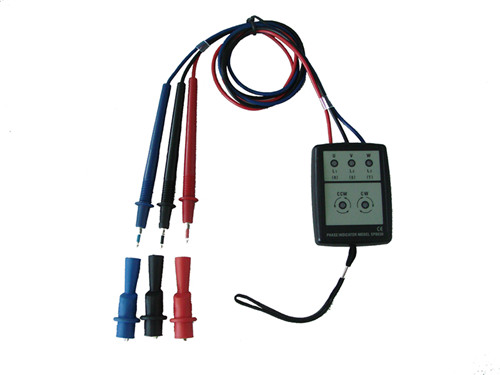

Digital phase INDICATOR
Model:SP-8030
¢ñ.Features
Phase indicator designed to check the presence of open phase and also the phase sequence by LED and buzzer at the same time.
¢ò. Specifications:
Operational Voltage 200-480V AC three phase
Tine Limit for 60 minutes max .at 200V AC
Continuous use 4 minutes max.at 480V AC
Operating Frequency 20Hz-400Hz
Range
Withstand Voltage 4000V for one minute
Dimensions 80(L)*59(W)*23(D)mm
Weight Approx.200g
Test leads Double insulated cords.
approx,1 meter long,prods
for test leads instruction
manual,carrying case |
