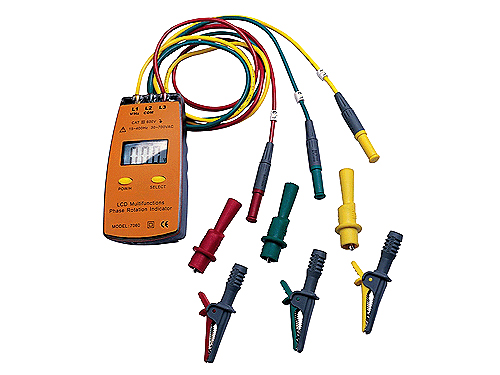

Phase Indicator
Model:ET-7060
1. Product Specification:
Feature: Meter is according to category 3 600V safety standard
LCD indicators for three phase sequence and open phases
Data hold and auto-power off after testing.
Indicator: Backlight LCD display (phase sequence & rotation direction)
Conformity: ICE348-class 3 of security .
Max. Supported Voltage: 4000V/minute
Operation Voltage: 30V-700V
Operation Frequency Range: 15HZ-400HZ
Phase Voltage Testing Range: 0~600V
Phase Frequency Testing Range:15Hz to 999Hz
Resolution: 1
Accuracy: ¡À(1.2%+3d)V and ¡À(0.5%+2d)Hz
Dimensions: 126x64x28mm
Weight: 230g
2. Packing Information:
Package: Gift box
Carton Size: 35x30x56cm
Quantity / Carton: 50pcs
Net Weight/Gross Weight: 14/15KGs
3. Note:
Minimum Order Quantity: 50pcs
Delivery Lead Time: 20 days
Payment Term: T/T in advance |
