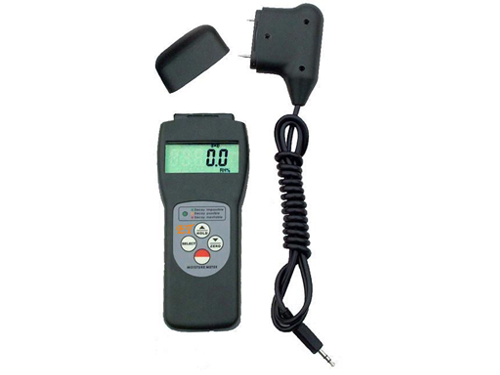

Wood Moisture Meter
Product Name: |
Wood Moisture Meter |
Model No. |
MC-7825PS |
Type |
pin & induction type |
Measuring Materials |
wood fiber material, tobacoo, plaster, concrete etc |
Display |
LCD Display |
Resolution |
0.1 |
Measurement Range |
wood moisture 0-80% |
building materials 0-50% |
Calibration |
auto |
Accuracy |
¡À(0.5%n+0.1) |
Battery Indicator |
low battery indicator |
Power Supply |
4*1.5AAA(UM-4) battery |
PC Interface: |
RS232C interface |
Dimensions |
165x62x26mm / 6.5*2.4*1.0inch |
Weight |
335g (excluding battery) |
Optional Accessories |
18% moisture standard tester (pin type) |
RS-232C or USB cable & software |
bluetooth interface |
Induction Code:
Density |
Code |
Material |
Kg/m3 |
|
for reference |
200 |
1 |
|
220 |
2 |
|
240 |
3 |
foam material,cork |
320 |
4 |
felt |
400 |
5 |
peat,charcoal |
440 |
6 |
coke |
480 |
7 |
slaked lime |
520 |
8 |
560 |
9 |
plywood |
600 |
10 |
wood,cardboard |
800 |
11 |
leather,slag,kerosene,alcohol,polyethylene |
1000 |
12 |
bituminous coal,bamboo,paraffin,ABS |
1200 |
13 |
clay,organic glass |
1400 |
14 |
pitch,lime,rubber |
1600 |
15 |
stone,sand(dry),clay brick |
1800 |
16 |
asbestos board,vitriol(87%) |
2000 |
17 |
sand(wet),bricklaying,refractory brick |
2200 |
18 |
quartz glass |
2500 |
19 |
concrete,asbestos,plaster,ceramics,glass |
3000 |
20 |
marble,granite,magnetite | |
